Insulated Raft Foundation SystemBuilt for Low-Energy Construction in the UK
ISOQUICK supplies project-specific insulated raft foundation systems for self-builders, architects, timber-frame companies and developers across the UK. The system helps reduce heat loss at the floor edge by keeping the insulation continuous where the wall meets the slab.
Request a technical callbackSee how it works →
A school-sized insulation assembly completed over three days
ISOQUICK supplied the IQ-60e insulated raft system for Kidwelly School, one of three new primary schools built for Carmarthenshire County Council. The documented three-day timing applies to the ISOQUICK insulation assembly, not the complete foundation or wider construction programme.
These photographs show the installation stage. A verified finished-building photograph for this project is not currently held in the approved project assets.
Useful at first contact: your contact details, project type and location, approximate size or number of plots, project stage, likely timeline, and any extra context you already have.
The Foundation Detail That Matters
What Is an Insulated Raft Foundation?

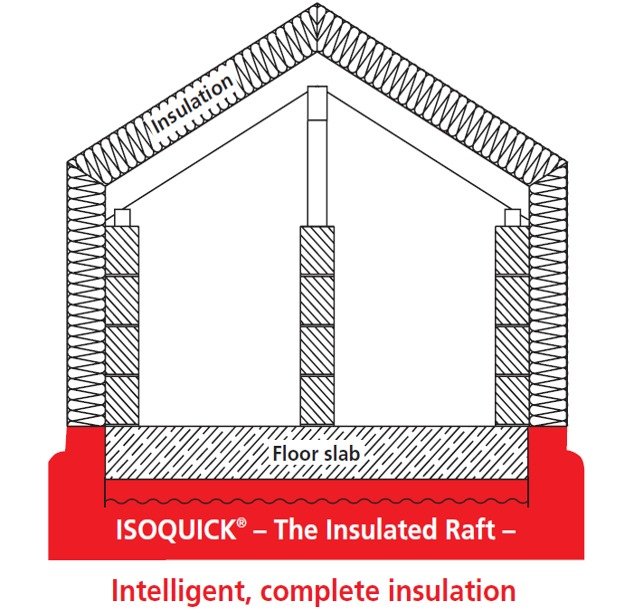

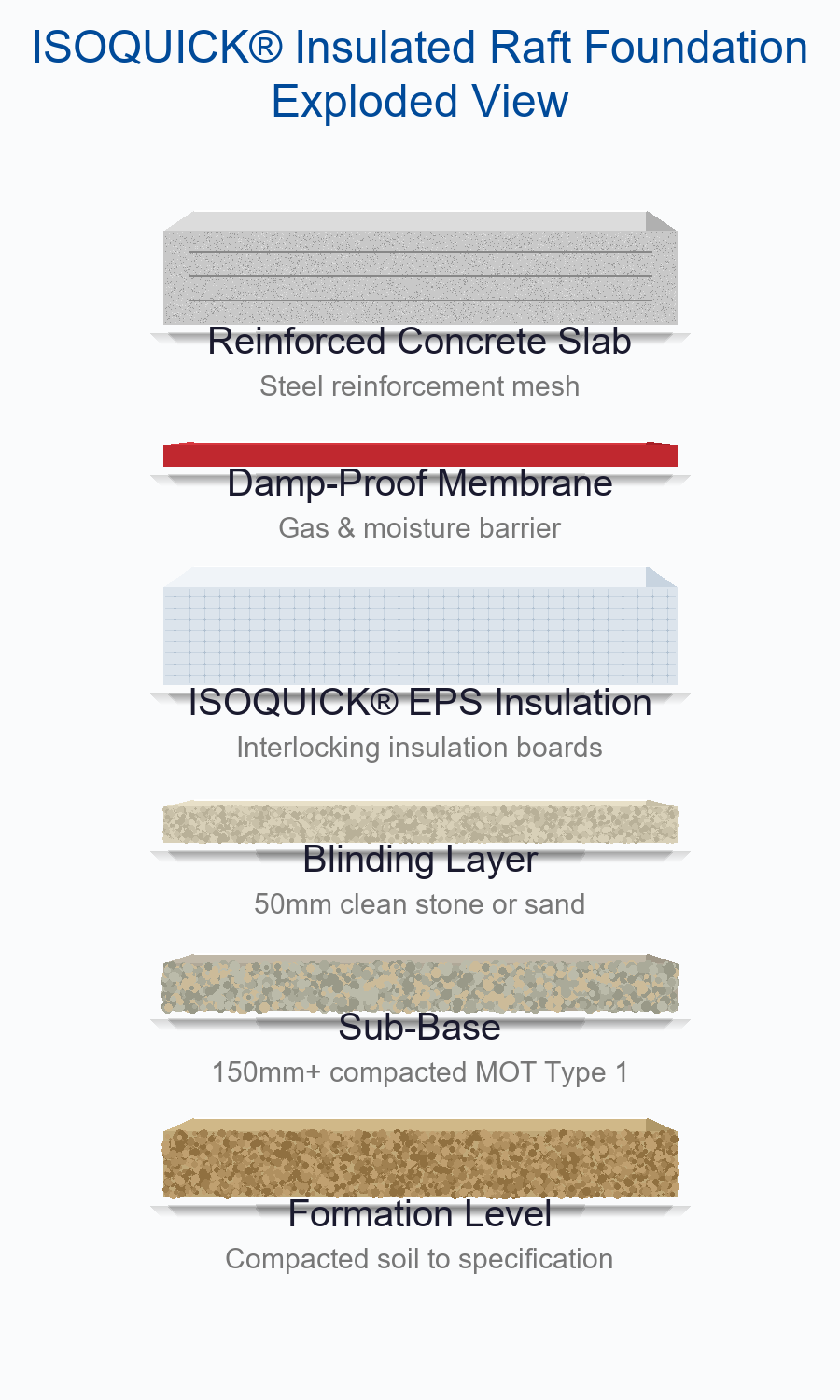

An insulated raft foundation - also known as a Passiv-slab - is a single concrete slab that sits on a continuous layer of high-performance EPS (expanded polystyrene) insulation, wrapped right around the full perimeter edge as well as underneath. Because the insulation runs under the whole footprint, the slab spreads your building's load evenly across the ground - so there's no need for separate footings, unlike a traditional strip foundation.
Because that insulation wraps continuously from under the floor up around the base of the wall, the detail is designed to minimise thermal bridging at the wall-floor junction. This junction is also where a foundation's Psi (Ψ) value is decided: every bit as important as the more familiar U value, and one of the figures worth asking about when you're comparing systems.
ISOQUICK® takes this a step further with a Kiwa BDA-certified, factory-engineered system: edge components arrive pre-cut and numbered. On suitable prepared sites, the insulation assembly can be completed within hours; reinforcement and concrete follow as separate, engineer-led stages.
Browse the foundation details and installation guides, or request a technical callback about your project.
Read the full explanation →
Why ISOQUICK?
The fast route to a better foundation.
A faster insulation stage
Pre-cut, numbered components simplify the ISOQUICK assembly stage once the engineered sub-base is ready.
Excellent thermal performance
Great U-values, strong PSI performance, and a continuous insulated edge where foundations usually lose heat.
Pre-engineered certainty
Edge components are prefabricated, numbered, and made for your project before they arrive on site.
How the ISOQUICK® System Works
Scroll through the construction sequence to see how the ISOQUICK® insulated raft is installed on site.
Step 01
Whether Big or Small
Each project starts the same way.
Step 02

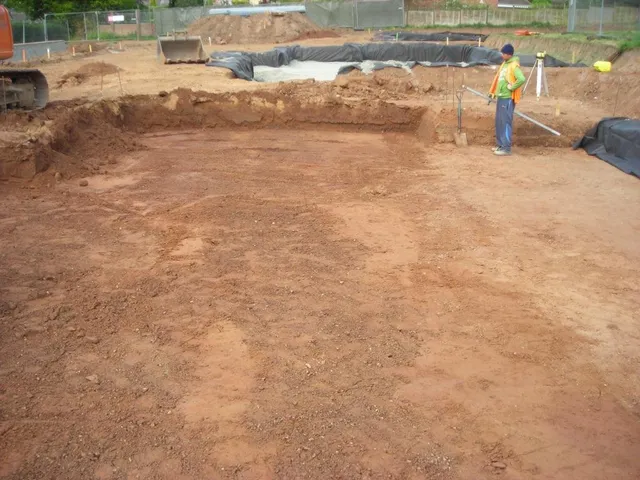

Strip to Formation Level
The site is marked out and soil stripped to the formation level. The actual depth will depend on the local site conditions.
Step 03

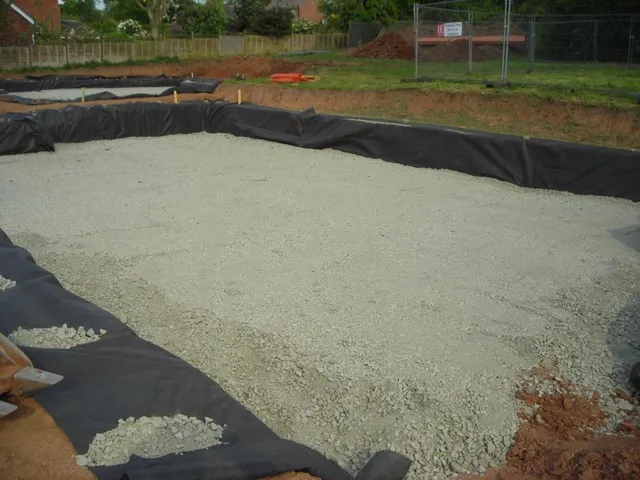

Install the Sub-Base
The free draining sub-base is installed in strict accordance with the engineer's specification.

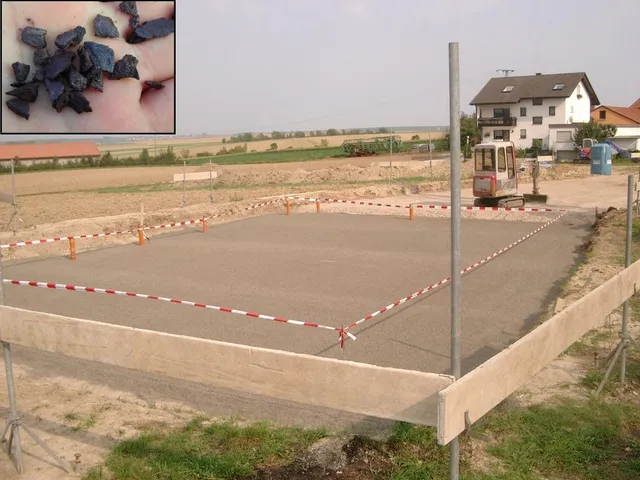

Step 04
Prepare the Grit Layer
A base layer of grit, for example 4/8, is applied over the capillary-barrier layer of frost-proof material. The formation level provides a clean, flat and level base for the modules of ISOQUICK The Insulated Raft.

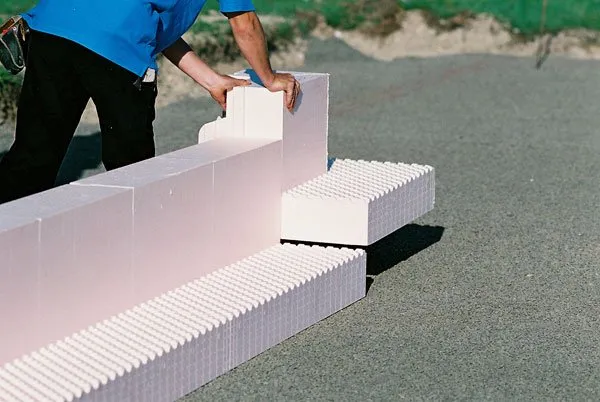

Step 05
Install Edge Modules
The edge modules are assembled according to the supplied ISOQUICK installation plan. The dovetail locking system ensures a secure connection during installation and concreting work.
Step 06

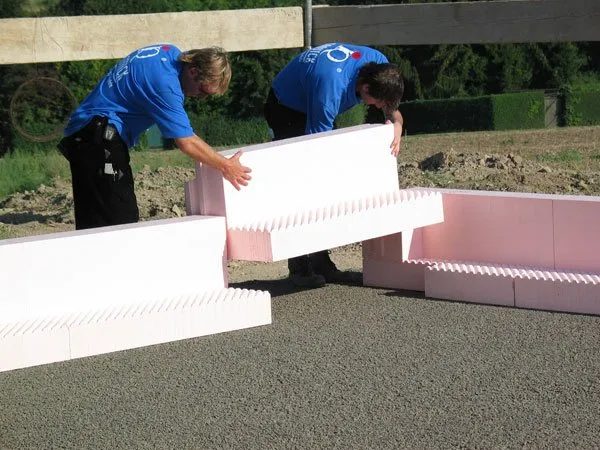

Complete the Perimeter
The last edge module fits perfectly into place.
Step 07

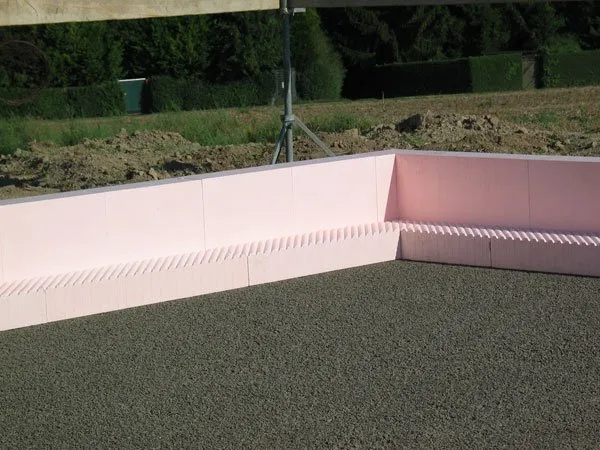

Check Position and Diagonals
The thermally insulating boarding provided by the ISOQUICK edge modules is soon installed. It is then aligned again with the batter boards and checked by measuring the diagonals.

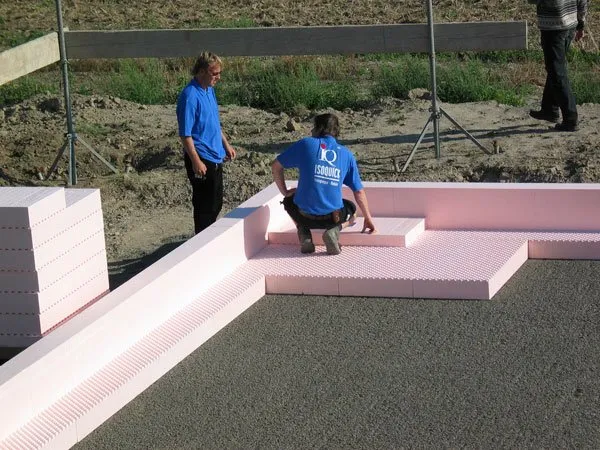

Step 08
Install Ground and Deck Modules
The base modules and the top modules are now put in place. Continuous joints are avoided by covering the edge modules with top modules and by using an offset installation pattern.
Step 09

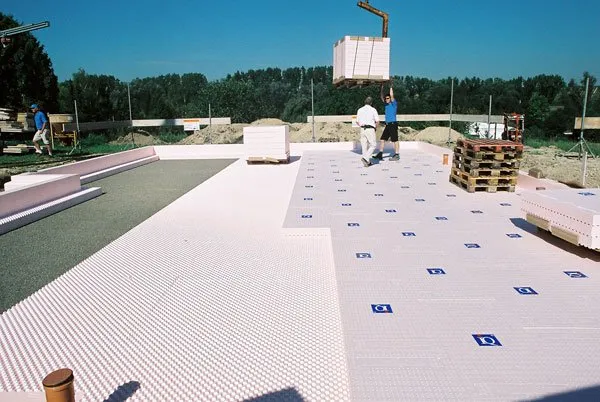

Work Row by Row
Installation can now proceed row-by-row. The offcuts from one row are used to start the next row, thus reducing waste to a minimum.

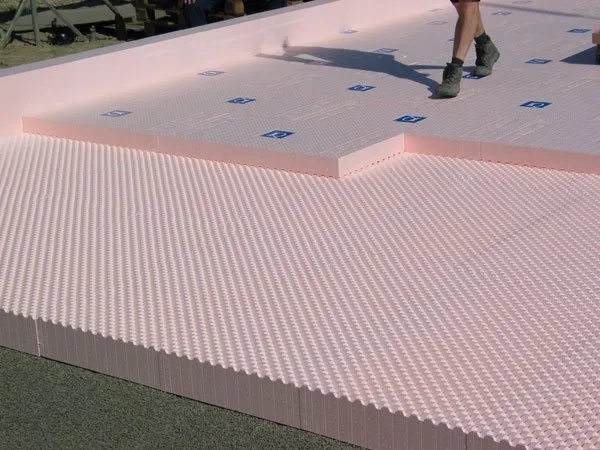

Step 10
Lock the Modules Together
The intelligent profile pattern system ensures that the individual modules are tightly positioned and that no sliding takes place during installation and concreting work.
Step 11

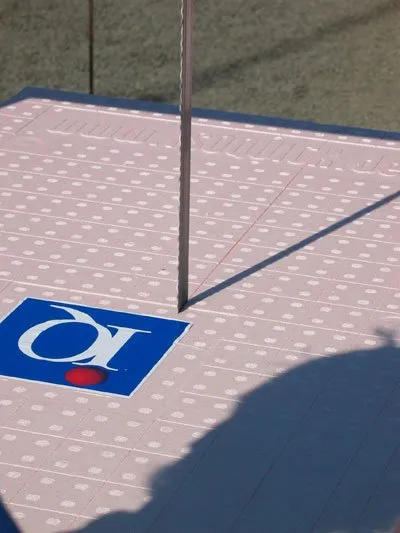

Cut Where Needed
Cutting guides are moulded on the smooth sides of the modules to make cutting easier inside the grid. The modules can be easily cut using a hot wire cutter.

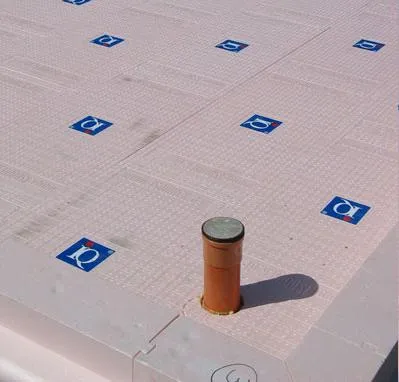

Step 12
Form Service Openings
Where pipes run through the thermal insulation, holes are sawn out or drilled out, as shown here. The hole can be closed again using construction foam.
Step 13

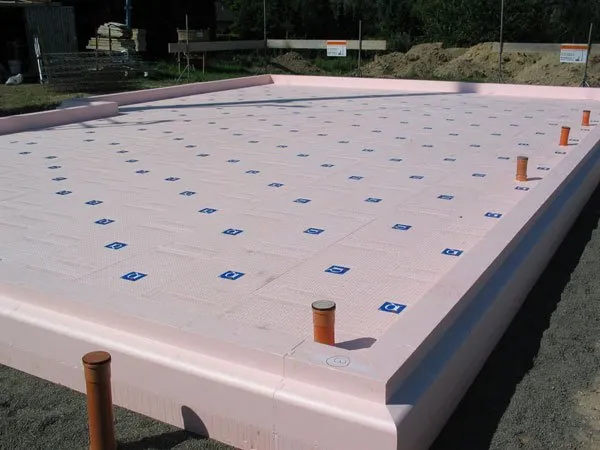

Ready for Reinforcement
ISOQUICK The Insulated Raft is completed and ready for reinforcement and concrete.
Step 14

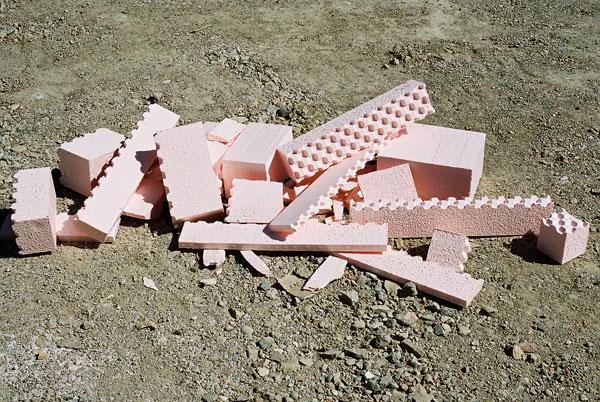

Minimise Waste
A minimal amount of waste offcuts arises for an ISOQUICK The Insulated Raft of around 150 m², if the offset installation pattern is strictly adhered to.
Step 15

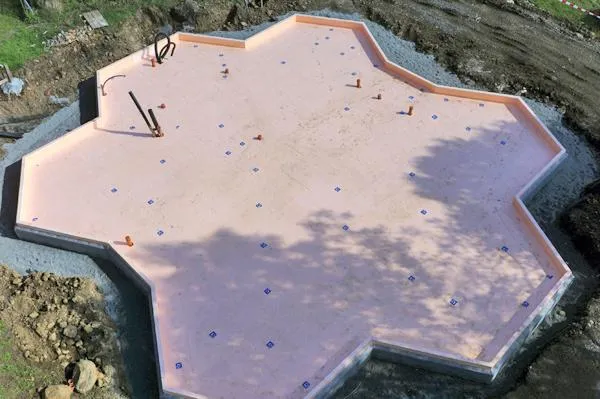

Handle Irregular Shapes
Not a problem. As usual, the edge modules are precut at the appropriate angle.
Step 16

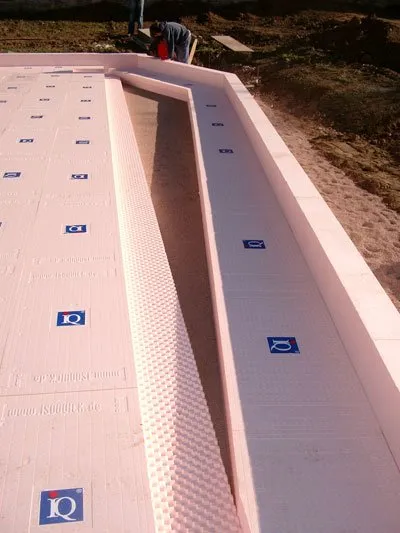

Install Angled Rows
A row of base and top modules is laid at right angles to the edge modules. The remaining modules are installed in an offset pattern along the row.
Step 17

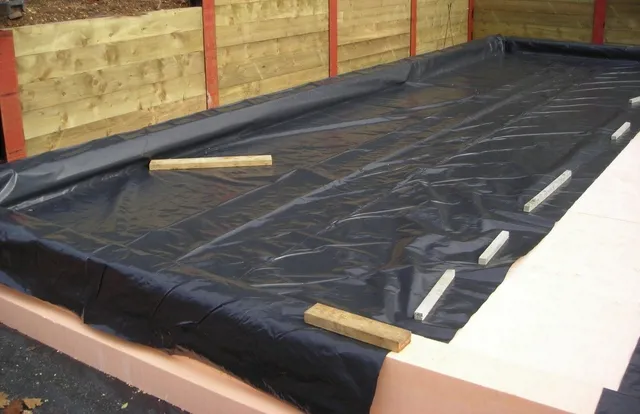

Install DPM or Radon Barrier
A standard DPM, or radon barrier if required, is installed and the required reinforcements installed in ISOQUICK The Insulated Raft.

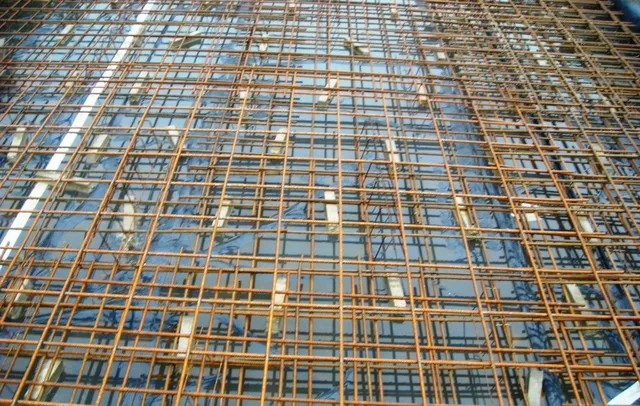

Step 18
Lay Reinforcement
The reinforcement, typically fabric sheets, is laid on concrete spacers, tied and checked prior to the pour.
Step 19

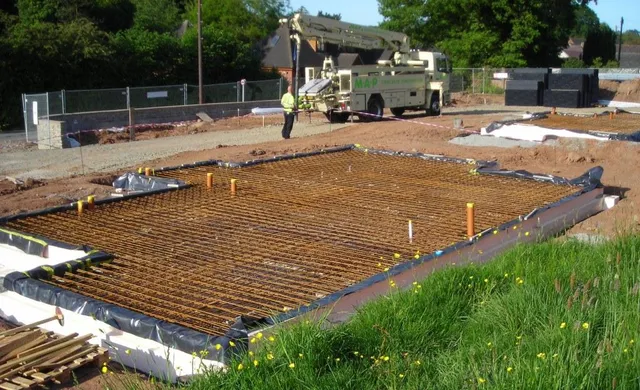

Ready to Pour
Robust, but simple: the slab is ready to fill with concrete.
Step 20

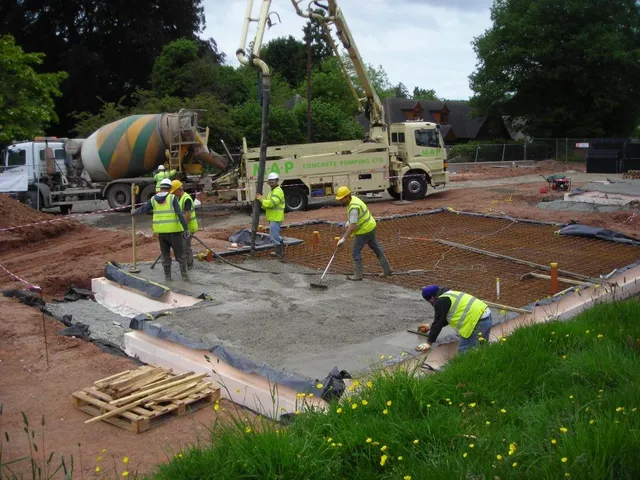

Place Concrete
Concrete can be poured into ISOQUICK The Insulated Raft using a crane or concrete pump, as shown here, without the need for further shuttering.

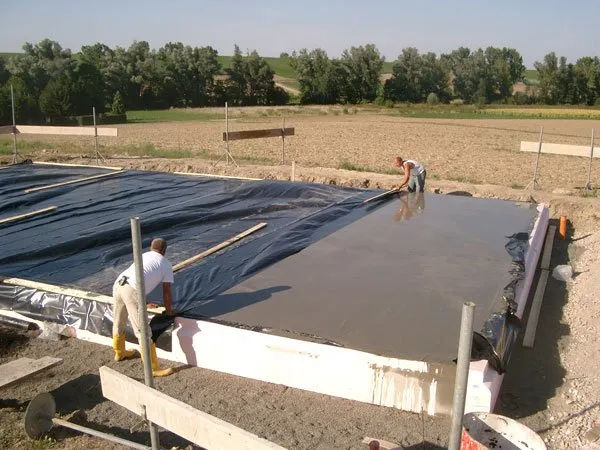

Step 21
Finish the Concrete
The concrete is then finished in the usual manner.
Applications & Build Types
ISOQUICK® works across a wide range of construction types - from single self-builds to large commercial developments.
Self-Builders
Passivhaus-certified insulated raft foundation for one-off homes. Backed by 15+ years of UK experience. Expert design support included.
Timber Frame Companies
Precise tolerances and coordinated connection details designed to minimise thermal bridging at the wall-floor junction.
Architects
Compatible with any type of wall construction. Exceeds Part L and Passivhaus thermal targets.
Builders & Developers
Predictable costs, faster construction, and reduced programme complexity on housing developments, schools, and commercial projects.

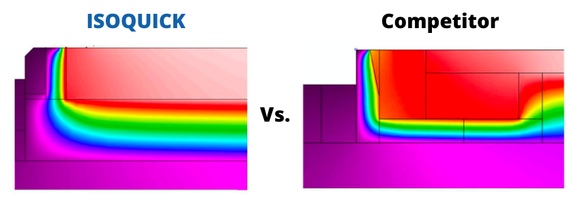

Thermal Performance & Thermal-Bridge Control
What is cold bridging - and why does it matter?
A cold bridge occurs where heat bypasses the insulation at a junction or local weak point. At the wall-floor junction, traditional foundations create an unbroken conductive path from the cold ground to the warm interior.
ISOQUICK® wraps insulation continuously around the perimeter to reduce heat loss at the wall-floor junction. The result for any project depends on its geometry, wall build-up and detailed junction design.
Check the linked certificates for the configurations assessed by the Passive House Institute and under Kiwa BDA Agrément BAF-20-179-S-A-UK.
Floor U-values depend on insulation depth and your building's perimeter-to-area ratio. See the U-value tables and the typical section.
Certifications & Compliance
Industry-leading standards you can trust
Passivhaus Trust Patron
Certified Passive House Component
KIWA Assessed Construction System
KIWA BDA Agrément
AECB Member
See the Kiwa BDA Agrément certificate details or browse the technical details library for junction drawings, sub-base arrangements and installation guides.
Installation Process
From first conversation to on-site assembly, ISOQUICK provides the system layout, thermal specification and installation plan alongside the project engineer's structural design.
First Conversation
Tell us about your project. We'll discuss your needs, timeline, and build specification.
Bespoke System Layout
We develop the ISOQUICK® layout and thermal specification around your project, working with the qualified structural engineer responsible for the foundation design, loadings and reinforcement.
Factory Manufacture
Edge components are precision-cut to your dimensions off-site. Delivered numbered, ready to assemble.
On-Site Assembly
No specialist labour required.
Assembly as low as 2 hours. Concrete can be poured the same day, subject to the project structural engineer's slab reinforcement design.
* Assembly time refers to the placement and interlocking of ISOQUICK® components on a prepared sub-base. Actual total installation time will vary depending on project size, site conditions, slab reinforcement design, and readiness of concrete supply.
Case Studies & Projects
Award-winning ISOQUICK® insulated raft foundation installations across residential, commercial, and self-build developments throughout the UK.

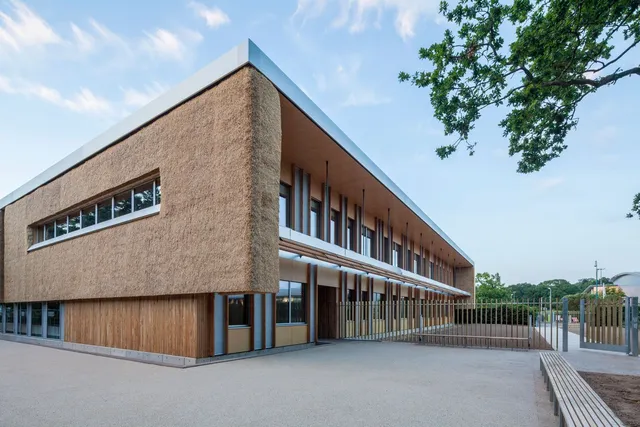

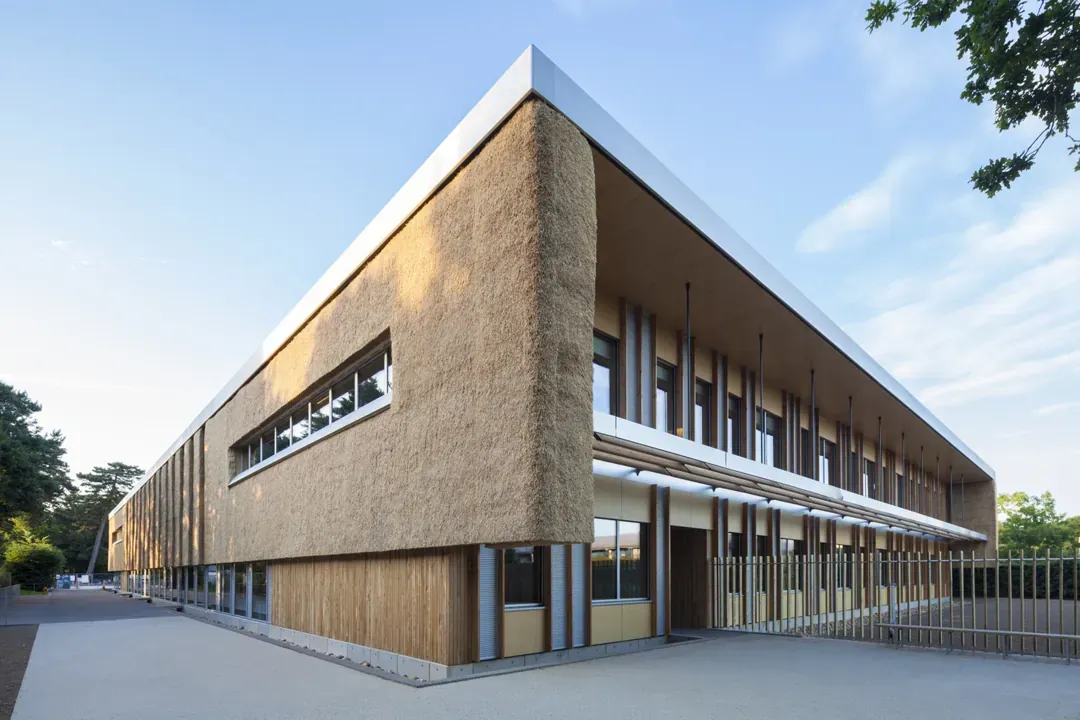

UEA Enterprise Centre
Passivhaus certified • RIBA Award Winner

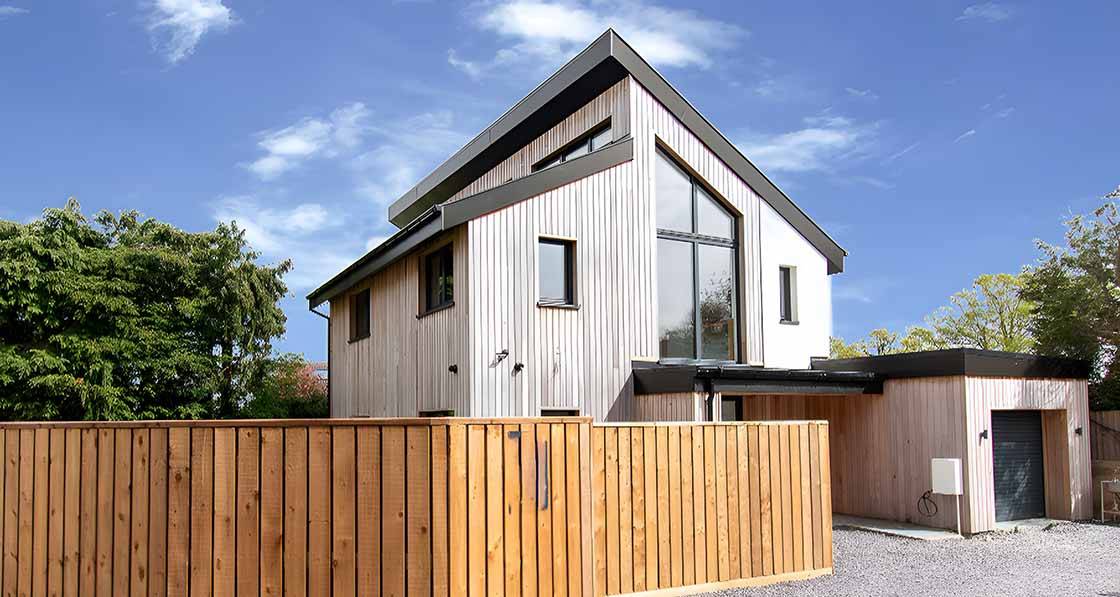

Passivhaus Self-Build
Certified Passivhaus • Hertfordshire

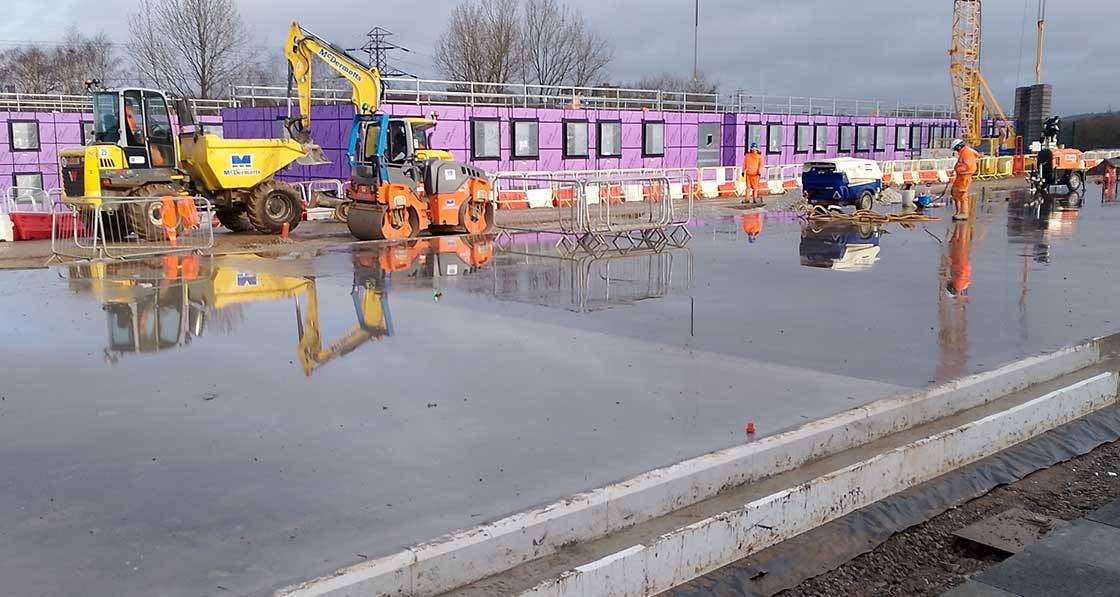

Staffordshire University
750+ Student Accommodation Units

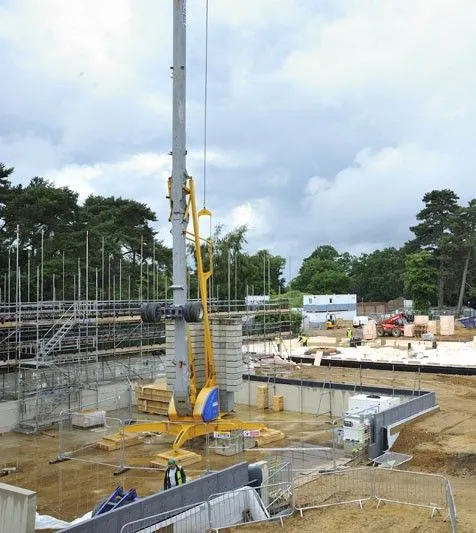

Timber Frame Passivhaus
Modern Low-Energy Home

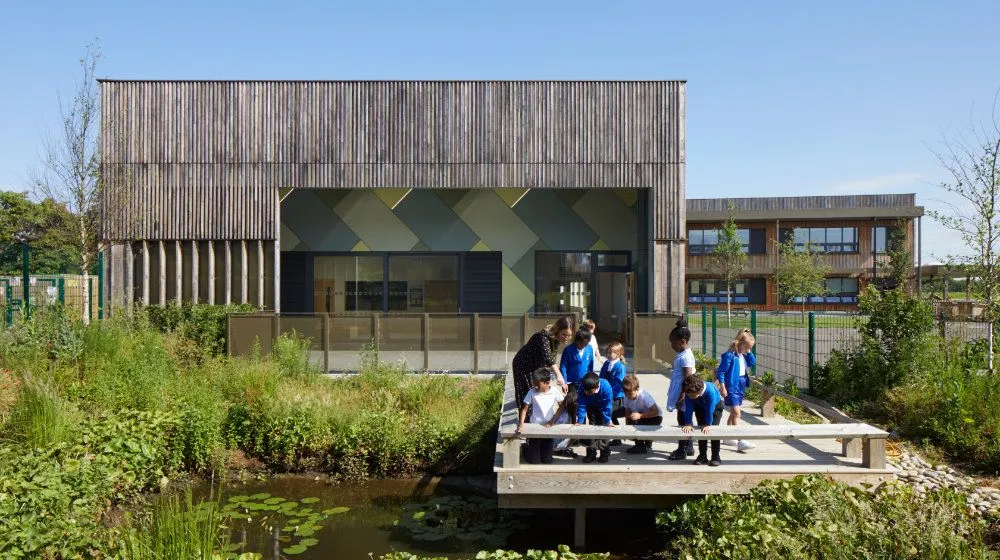

Hackbridge Primary School
UK Passivhaus Awards Winner
Bespoke Self-Build
Pre-cut, interlocking insulated foundation system
Why Choose ISOQUICK®?
Certified & Trusted
KIWA BDA Agrément · Certified Passive House Component
Full third-party certification accepted by building control, warranty providers, and Passivhaus certifiers.
Insulation Assembly Can Take Hours
On suitable projects, the pre-cut ISOQUICK components can be assembled in hours once the engineered sub-base is prepared. Reinforcement and concrete are separate stages.
Controls Thermal Bridging
Continuous perimeter insulation is designed to minimise heat loss at the wall-floor junction. Project-specific performance depends on the complete detail.
Expert Technical Support
Construction details are reviewed and coordinated with your appointed structural engineer. Project-specific U-value reports are included; structural design and calculations must be provided or approved by a qualified structural engineer.
Proven Across the UK
Over 16 years of UK installations. Used on award-winning buildings from Passivhaus homes to schools.
Works with Any Build System
Compatible with timber frame, ICF, brick and block, SIPs, and modern methods of construction.
"ISOQUICK® gave us the thermal performance we needed for Passivhaus certification. The installation was incredibly fast and the team provided excellent technical support throughout the project."
"The precision of the ISOQUICK® system meant our timber frame went up exactly as designed. No thermal bridges, no cold spots. It's the foundation system we specify on all our Passivhaus projects now."
Frequently Asked Questions
Is ISOQUICK® accepted by building control?
Yes. ISOQUICK® holds KIWA BDA Agrément certificate BAF-20-179-S-A, providing independent third-party confirmation of structural and thermal performance. This is accepted by local authority building control and approved inspectors across the UK.
Can ISOQUICK® achieve Passivhaus certification?
Yes. ISOQUICK® is a certified Passivhaus component verified by the Passivhaus Institut. It has been used on numerous certified Passivhaus projects in the UK including award-winning buildings. Our team provides the thermal data and PHPP inputs your certifier needs.
What U-values does the insulated raft foundation achieve?
Depending on specification, published ISOQUICK® tables include slab U-values from 0.08 W/m²K upwards. Floor U-values and wall-floor Psi-values depend on the project dimensions, insulation depth and complete junction detail, so they should be checked for the actual build-up.
How long does installation take?
Assembly as low as 2 hours on a prepared site. Actual time depends on the project size, site conditions and structural design. All edge components arrive pre-cut and numbered, and concrete can be poured once the project structural engineer's reinforcement requirements have been met.
Is it suitable for timber frame construction?
Yes - ISOQUICK® is one of the most widely used insulated raft systems for timber frame builds in the UK. The precision-cut edge beams provide the exact tolerances and level sill required for timber frame erection, while the continuous insulation eliminates the wall-floor cold bridge that is a common weak point on timber frame projects.
Talk through your project
Share your project type, location, approximate size, stage and timeline. ISOQUICK can then explain the information needed for an initial technical review.
